In-line Impregnation Systems
We provide turnkey solutions to our clients' specific requirements for impregnation. From conceiving the project, to manufacturing the solution, to implementing it at our clients' end- We are present at each stage.
At our job shops, you can leverage our experience that spans over 30 years to ensure optimal impregnation of your components. However if your scale of operations is very lage acquiring your own impregnation unit you will save on time, money and complicated logistics. when your scale of operations is very large. At our end, we offer clients the option to choose from either a semi-automatic or a fully automatic impregnation line.
At our factories situated at Pune, India, we build complete Metal Impregnation Units. In addition to standard designs, we manufacture units that are customised to meet specific clients' requirements.
We also learn from the experience of our job shop activities to upgrade our assembled impregnation lines. Modifications in our products are only made after they have been tested and their efficiency has been proven on the floor. Sometimes clients need additional equipment for conversion of existing installations. We also supply the technology and the equipment needed for such conversions.

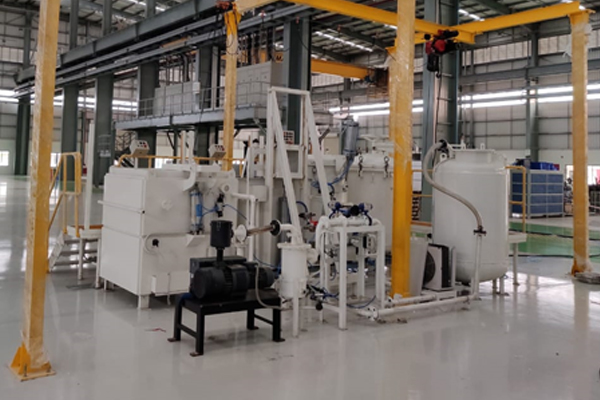

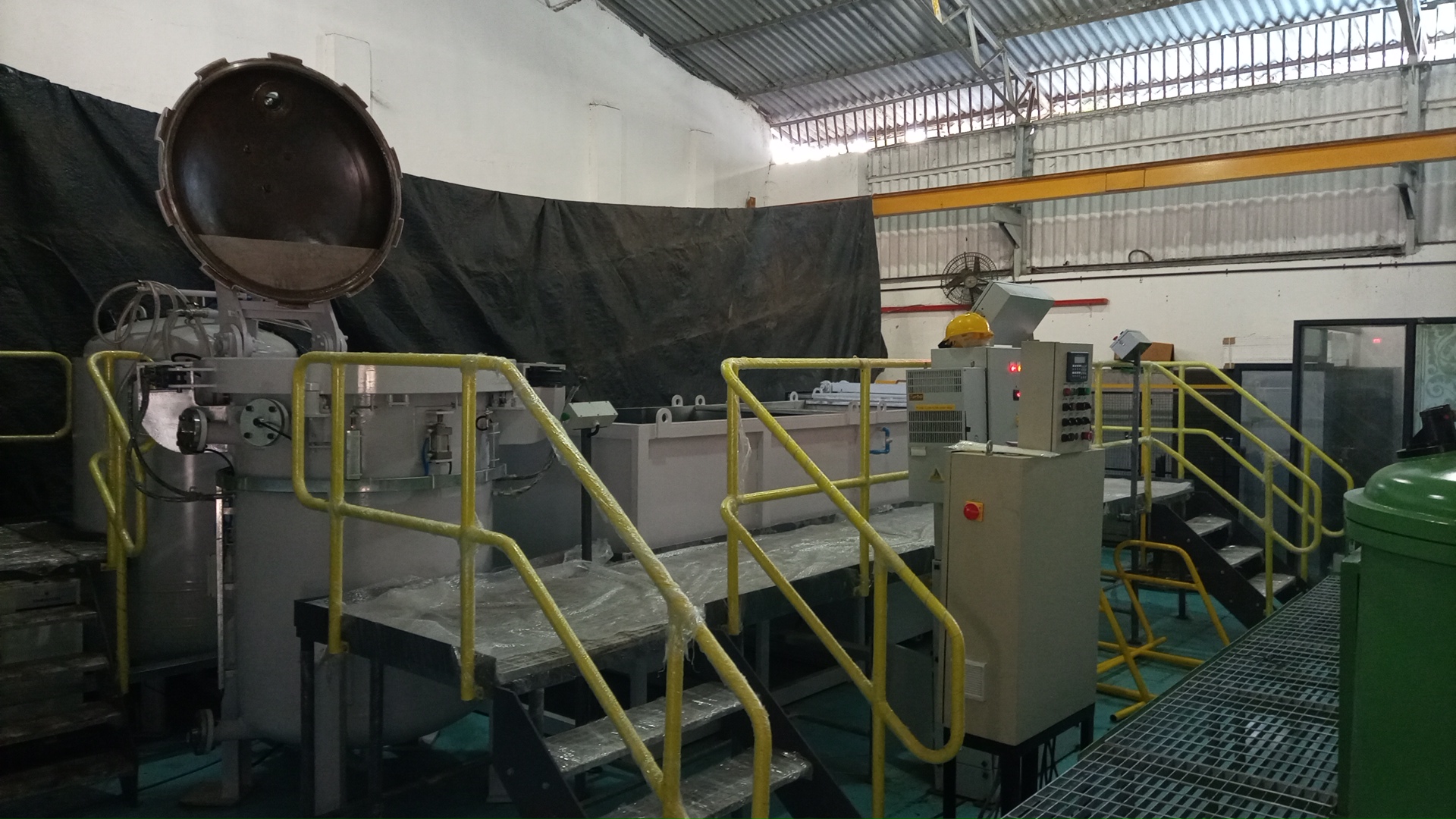

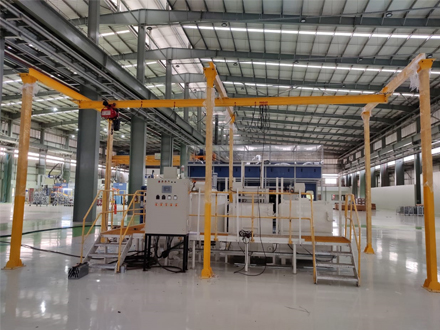

Semi Automatic Impregnation System
Semi Automatic Impregnation Systems:
| Model | Dimensions of charge Basket
(mm) |
Maximum Charge Weight
(kgs) |
Floor space L x W (m) |
Operating height up to crane hook
(m) |
Power 3 Phase
(KW) |
Sealant initial fill
(kgs) |
|---|---|---|---|---|---|---|
| 450 | ϕ325 x 400 ht. | 100 | 5.5 x 2.50 | 2.6 | 5 | 100 |
| 600 | ϕ520 x 550 ht. | 200 | 6.60 x 3.00 | 2.75 | 13 | 200 |
| 750 | ϕ700 x 700 ht. | 500 | 8.1 x 3.25 | 2.75 | 12 | 300 |
| 950 | ϕ850 x 700 ht. | 600 | 9.25 x 3.75 | 3.25 | 22 | 600 |
| 1100 | ϕ1000 x 900 ht. | 1000 | 10.0 x 4.1 | 4.0 | 28 | 1000 |
| 1200 | ϕ1100 x 1100 ht. | 1100 | 10.5 x 5.10 | 3.60 | 32 | 1200 |
| 1500 | ϕ1300 x 1300 ht. | 1600 | 11.8 x 5.65 | 4.60 | 50 | 2000 |
| 1600 | ϕ1450 x 1450 ht. | 1700 | 12.5 x 6.00 | 5.0 | 50 | 2400 |
Fully Automatic Impregnation Systems:
Fully Automatic Casting Impregnation Lines With Affordable Pricing Read More
